Add PXE boot test

This adds a whole wodge of stuff to support_server to make it
act as a PXE server, then adds a new test which boots from PXE
and so should hit the PXE server. We use the NFS install repo as
that can be relied on to work for a support_server install.

Signed-off-by: Adam Williamson <awilliam@redhat.com>
This commit is contained in:
Adam Williamson 2019-08-15 17:51:57 -07:00
parent a177a63ec1
commit 2f51f3ef20
5 changed files with 178 additions and 3 deletions
Show Stats Download Patch File Download Diff File Expand all files Collapse all files

16
needles/console/bootloader_bios_pxe-20190816.json Normal file
View File

@ -0,0 +1,16 @@
{
"area": [
{
"xpos": 204,
"ypos": 279,
"width": 223,
"height": 20,
"type": "match"
}
],
"properties": [],
"tags": [
"bootloader",
"bootloader_bios"
]
}

BIN

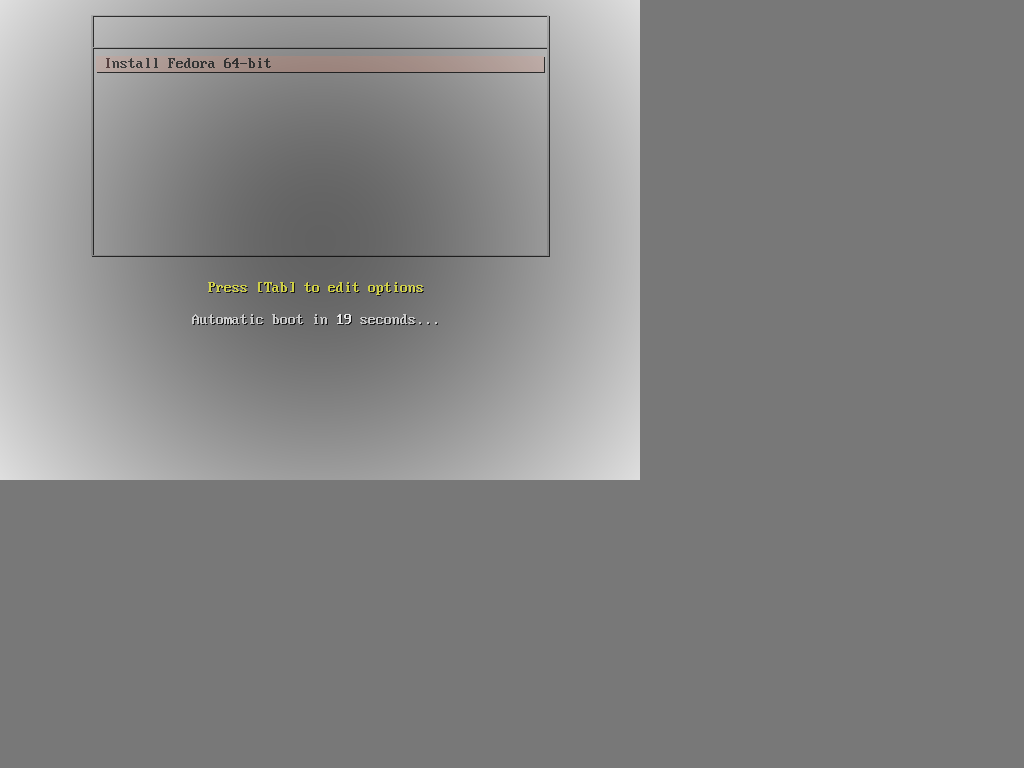

needles/console/bootloader_bios_pxe-20190816.png Normal file
View File

Binary file not shown.
Side by Side

After

Width:  |  Height:  |  Size: 31 KiB

62
templates
View File

@ -1712,6 +1712,28 @@
},
test_suite => { name => "install_kickstart_nfs" },
},
{
machine => { name => "64bit" },
prio => 30,
product => {
arch => "x86_64",
distri => "fedora",
flavor => "universal",
version => "*",
},
test_suite => { name => "install_pxeboot" },
},
{
machine => { name => "uefi" },
prio => 31,
product => {
arch => "x86_64",
distri => "fedora",
flavor => "universal",
version => "*",
},
test_suite => { name => "install_pxeboot" },
},
{
machine => { name => "64bit" },
prio => 30,
@ -2861,6 +2883,18 @@
},
test_suite => { name => "install_kickstart_nfs" },
},
{
group_name => "Fedora PowerPC",
machine => { name => "ppc64le" },
prio => 30,
product => {
arch => "ppc64le",
distri => "fedora",
flavor => "universal",
version => "*",
},
test_suite => { name => "install_pxeboot" },
},
{
group_name => "Fedora PowerPC",
machine => { name => "ppc64le" },
@ -3785,6 +3819,18 @@
},
test_suite => { name => "install_kickstart_nfs" },
},
{
group_name => "Fedora AArch64",
machine => { name => "aarch64" },
prio => 30,
product => {
arch => "aarch64",
distri => "fedora",
flavor => "universal",
version => "*",
},
test_suite => { name => "install_pxeboot" },
},
{
group_name => "Fedora AArch64",
machine => { name => "aarch64" },
@ -4348,6 +4394,22 @@
{ key => "WORKER_CLASS", value => "tap" },
],
},
{
name => "install_pxeboot",
settings => [
# this delays VM boot so we can wait till the PXE server
# is ready
{ key => "DELAYED_START", value => "1" },
# this is to ensure the test never 'accidentally' passes
# by falling back to boot from ISO
{ key => "+ISO", value => "" },
{ key => "TEST_TARGET", value => "COMPOSE" },
{ key => "PXEBOOT", value => "once" },
{ key => "PARALLEL_WITH", value => "support_server:%ARCH_BASE_MACHINE%" },
{ key => "NICTYPE", value => "tap" },
{ key => "WORKER_CLASS", value => "tap" },
],
},
{
name => "install_repository_hd_variation",
settings => [

17
tests/_boot_to_anaconda.pm
View File

@ -1,11 +1,22 @@
use base "anacondatest";
use strict;
use lockapi;
use testapi;
use utils;
use anaconda;
sub run {
my $self = shift;
if (get_var("PXEBOOT")) {
# PXE tests have DELAYED_START set, so VM is not running yet,
# because if we boot immediately PXE will time out waiting for
# DHCP before the support server is ready. So we wait here for
# support server to be ready, then go ahead and start the VM
mutex_lock "support_ready";
mutex_unlock "support_ready";
resume_vm;
}
# construct the kernel params. the trick here is to wind up with
# spaced params if GRUB or GRUBADD is set, and just spaces if not,
# then check if we got all spaces. We wind up with a harmless
@ -36,8 +47,12 @@ sub run {
# set mutex wait if necessary
my $mutex = get_var("INSTALL_UNLOCK");
# we need a longer timeout for the PXE boot test
my $timeout = 30;
$timeout = 120 if (get_var("PXEBOOT"));
# call do_bootloader with postinstall=0, the params, and the mutex
do_bootloader(postinstall=>0, params=>$params, mutex=>$mutex);
do_bootloader(postinstall=>0, params=>$params, mutex=>$mutex, timeout=>$timeout);
# Read variables for identification tests (see further).
my $identification = get_var('IDENTIFICATION');

86
tests/_support_server.pm
View File

@ -1,16 +1,97 @@
use base "installedtest";
use strict;
use anaconda;
use testapi;
use lockapi;
use mmapi;
use tapnet;
use utils;
sub _pxe_setup {
# set up PXE server (via dnsmasq). Not used for update tests.
# don't get hung up on slow mirrors when DNFing...
repos_mirrorlist;
# create necessary dirs
assert_script_run "mkdir -p /var/lib/tftpboot/fedora";
# basic tftp config
assert_script_run "printf 'enable-tftp\ntftp-root=/var/lib/tftpboot\ntftp-secure\n' >> /etc/dnsmasq.conf";
# pxe boot config
# we boot grub directly not shim on aarch64 as shim fails to boot
# with 'Synchronous Exception'
# https://bugzilla.redhat.com/show_bug.cgi?id=1592148
assert_script_run "printf 'dhcp-match=set:efi-x86_64,option:client-arch,7\ndhcp-match=set:efi-x86_64,option:client-arch,9\ndhcp-match=set:bios,option:client-arch,0\ndhcp-match=set:efi-aarch64,option:client-arch,11\ndhcp-match=set:ppc64,option:client-arch,12\ndhcp-match=set:ppc64,option:client-arch,13\ndhcp-boot=tag:efi-x86_64,\"shim.efi\"\ndhcp-boot=tag:bios,\"pxelinux.0\"\ndhcp-boot=tag:efi-aarch64,\"grubaa64.efi\"\ndhcp-boot=tag:ppc64,\"boot/grub2/powerpc-ieee1275/core.elf\"\n' >> /etc/dnsmasq.conf";
# install and configure bootloaders
my $ourversion = get_var("CURRREL");
my $testversion = get_var("RELEASE");
assert_script_run "mkdir -p /var/tmp/fedora";
my $arch = get_var("ARCH");
if ($arch eq 'x86_64') {
# x86_64: use syslinux for BIOS, grub2 with 'linuxefi' for UEFI
assert_script_run "mkdir -p /var/lib/tftpboot/pxelinux.cfg";
# install bootloader packages
assert_script_run "dnf -y install syslinux", 120;
assert_script_run "dnf -y --releasever=$ourversion --installroot=/var/tmp/fedora install shim-x64 grub2-efi-x64", 300;
# copy bootloader files to tftp root
assert_script_run "cp /usr/share/syslinux/{pxelinux.0,vesamenu.c32,ldlinux.c32,libcom32.c32,libutil.c32} /var/lib/tftpboot";
assert_script_run "cp /var/tmp/fedora/boot/efi/EFI/fedora/{shim.efi,grubx64.efi} /var/lib/tftpboot";
# bootloader configs
# BIOS
assert_script_run "printf 'default vesamenu.c32\nprompt 1\ntimeout 600\n\nlabel linux\n menu label ^Install Fedora 64-bit\n menu default\n kernel fedora/vmlinuz\n append initrd=fedora/initrd.img inst.repo=nfs:nfsvers=4:10.0.2.110:/repo ip=dhcp\nlabel local\n menu label Boot from ^local drive\n localboot 0xffff\n' >> /var/lib/tftpboot/pxelinux.cfg/default";
# UEFI
assert_script_run "printf 'function load_video {\n insmod efi_gop\n insmod efi_uga\n insmod ieee1275_fb\n insmod vbe\n insmod vga\n insmod video_bochs\n insmod video_cirrus\n}\n\nload_video\nset gfxpayload=keep\ninsmod gzio\n\nmenuentry \"Install Fedora 64-bit\" --class fedora --class gnu-linux --class gnu --class os {\n linuxefi fedora/vmlinuz ip=dhcp inst.repo=nfs:nfsvers=4:10.0.2.110:/repo\n initrdefi fedora/initrd.img\n}' >> /var/lib/tftpboot/grub.cfg";
# DEBUG DEBUG
upload_logs "/etc/dnsmasq.conf";
upload_logs "/var/lib/tftpboot/grub.cfg";
upload_logs "/var/lib/tftpboot/pxelinux.cfg/default";
}
elsif ($arch eq 'ppc64le') {
# ppc64le: use grub2 for OFW
# install bootloader tools package
assert_script_run "dnf -y install grub2-tools-extra", 180;
# install a network bootloader to tftp root
assert_script_run "grub2-mknetdir --net-directory=/var/lib/tftpboot";
# bootloader config
assert_script_run "printf 'set default=0\nset timeout=5\n\nmenuentry \"Install Fedora 64-bit\" --class fedora --class gnu-linux --class gnu --class os {\n linux fedora/vmlinuz ip=dhcp inst.repo=nfs:nfsvers=4:10.0.2.110:/repo\n initrd fedora/initrd.img\n}' >> /var/lib/tftpboot/boot/grub2/grub.cfg";
# DEBUG DEBUG
upload_logs "/etc/dnsmasq.conf";
upload_logs "/var/lib/tftpboot/boot/grub2/grub.cfg";
}
elsif ($arch eq 'aarch64') {
# aarch64: use grub2 with 'linux' for UEFI
# copy bootloader files to tftp root (we just use the system
# bootloader, no need to install packages)
assert_script_run "cp /boot/efi/EFI/fedora/{shim.efi,grubaa64.efi} /var/lib/tftpboot";
# bootloader config
assert_script_run "printf 'function load_video {\n insmod efi_gop\n insmod efi_uga\n insmod ieee1275_fb\n insmod vbe\n insmod vga\n insmod video_bochs\n insmod video_cirrus\n}\n\nload_video\nset gfxpayload=keep\ninsmod gzio\n\nmenuentry \"Install Fedora 64-bit\" --class fedora --class gnu-linux --class gnu --class os {\n linux fedora/vmlinuz ip=dhcp inst.repo=nfs:nfsvers=4:10.0.2.110:/repo\n initrd fedora/initrd.img\n}' >> /var/lib/tftpboot/grub.cfg";
# DEBUG DEBUG
upload_logs "/etc/dnsmasq.conf";
upload_logs "/var/lib/tftpboot/grub.cfg";
}
# download kernel and initramfs
my $location = get_var("LOCATION");
my $kernpath = "images/pxeboot";
# for some crazy reason these are in a different place for ppc64
$kernpath = "ppc/ppc64" if ($arch eq 'ppc64le');
assert_script_run "curl -o /var/lib/tftpboot/fedora/vmlinuz $location/Everything/${arch}/os/${kernpath}/vmlinuz";
assert_script_run "curl -o /var/lib/tftpboot/fedora/initrd.img $location/Everything/${arch}/os/${kernpath}/initrd.img";
# chown root
assert_script_run "chown -R dnsmasq /var/lib/tftpboot";
assert_script_run "restorecon -vr /var/lib/tftpboot";
# open firewall ports
assert_script_run "firewall-cmd --add-service=tftp";
}
sub run {
my $self=shift;
## DNS / DHCP (dnsmasq)
# create config
assert_script_run "printf 'domain=domain.local\ndhcp-range=10.0.2.112,10.0.2.199\ndhcp-option=option:router,10.0.2.2' > /etc/dnsmasq.conf";
assert_script_run "printf 'domain=domain.local\ndhcp-range=10.0.2.112,10.0.2.199\ndhcp-option=option:router,10.0.2.2\n' > /etc/dnsmasq.conf";
# do PXE setup if this is not an update test
_pxe_setup() unless (get_var("ADVISORY_OR_TASK"));
# open firewall ports
assert_script_run "firewall-cmd --add-service=dhcp";
assert_script_run "firewall-cmd --add-service=dns";
@ -67,7 +148,8 @@ sub run {
# report ready, wait for children
mutex_create('support_ready');
wait_for_children;
# TODO we should add systematic data capture to help investigation when children failed.
# upload logs in case of child failures
$self->post_fail_hook();
}
sub test_flags {
